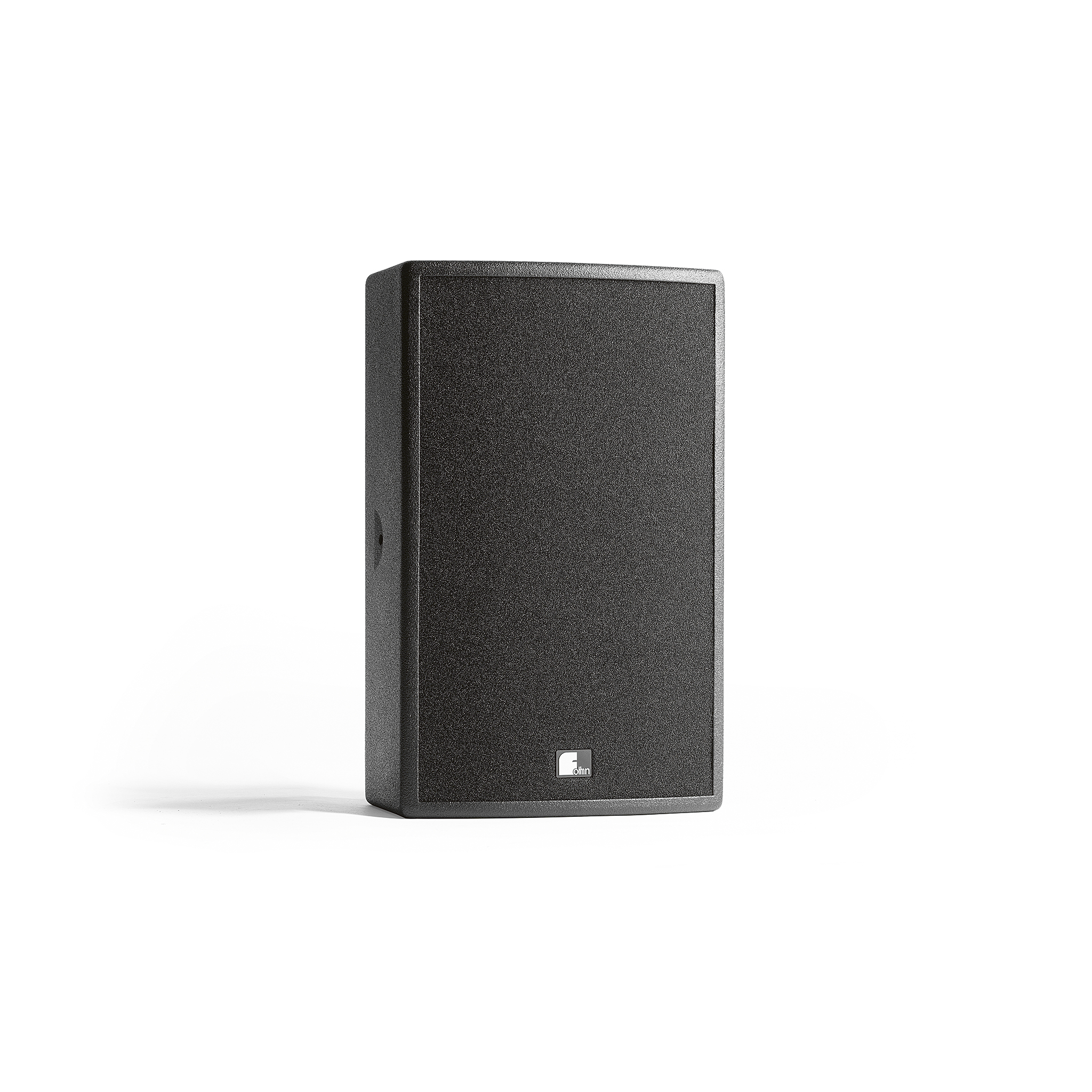

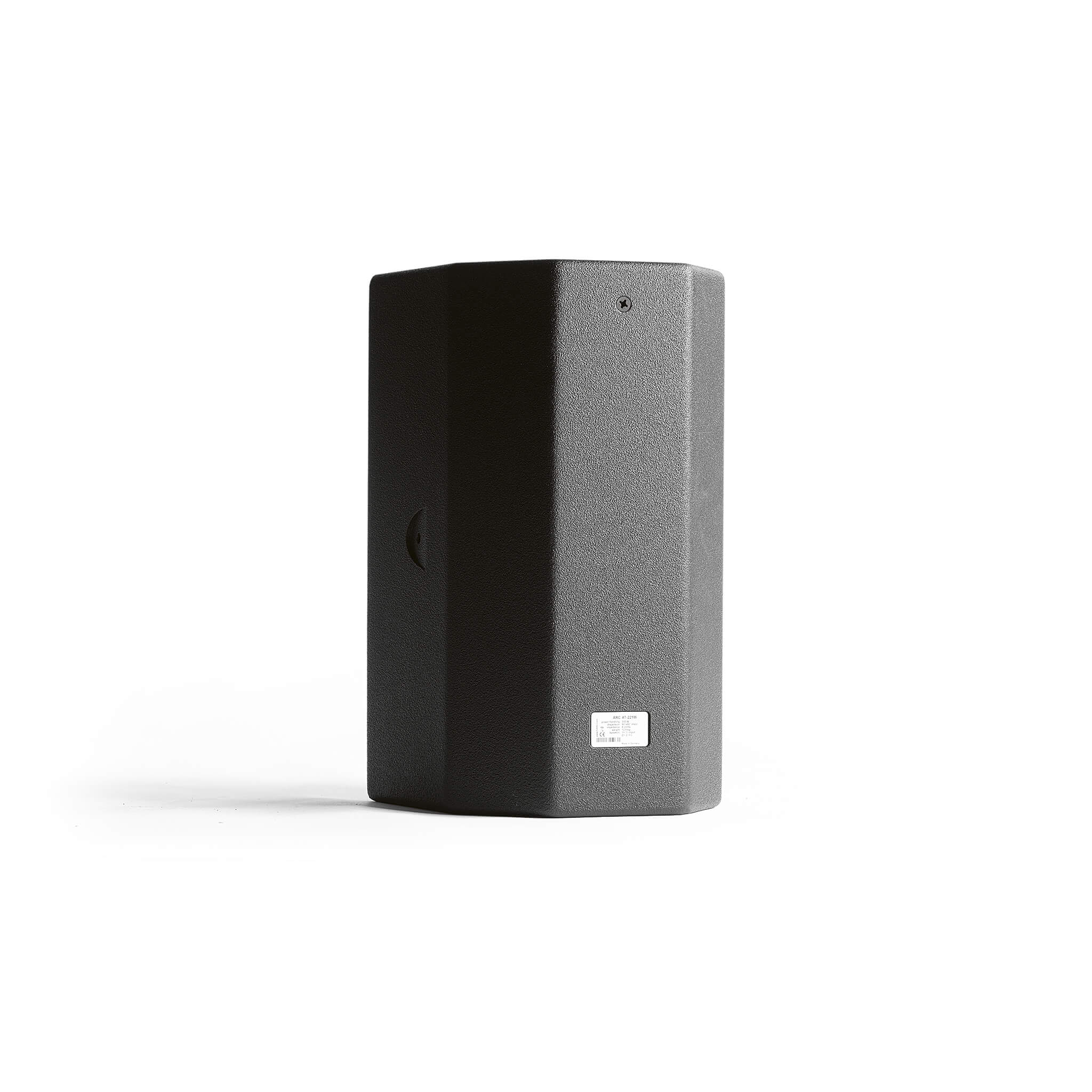

AT-221w는 실내외 고정형 설치를 위해 특별히 개발된 passive fullrange 스피커입니다. 하우징, 연결부, 그릴 등에 완벽한 waterproof 및 weather proof가 적용 되었습니다.
Electroacoustic features
-
acoustic design : passive loudspeaker, 2-way, vented design, weather resistant
-
power rating (nominal) : 300 watts
-
power rating (program) : 600 watts
-
power rating (peak) : 1200 watts
-
components : 10" / 1" on rotatable CD-horn, with self-resetting IPC[*]-HF protection
-
sensitivity : 101 dB
-
maximum SPL : 131 dB
-
frequency range : 70 Hz – 20 kHz
-
2-way design : yes
-
nominal impedance : 8 ohms
-
nominal dispersion (h × v) : 90° × 60° or 60° × 40°
Datasheet_AT-221w.pdf
1.15MB
Measurement-charts_AT-221w.pdf
0.41MB
