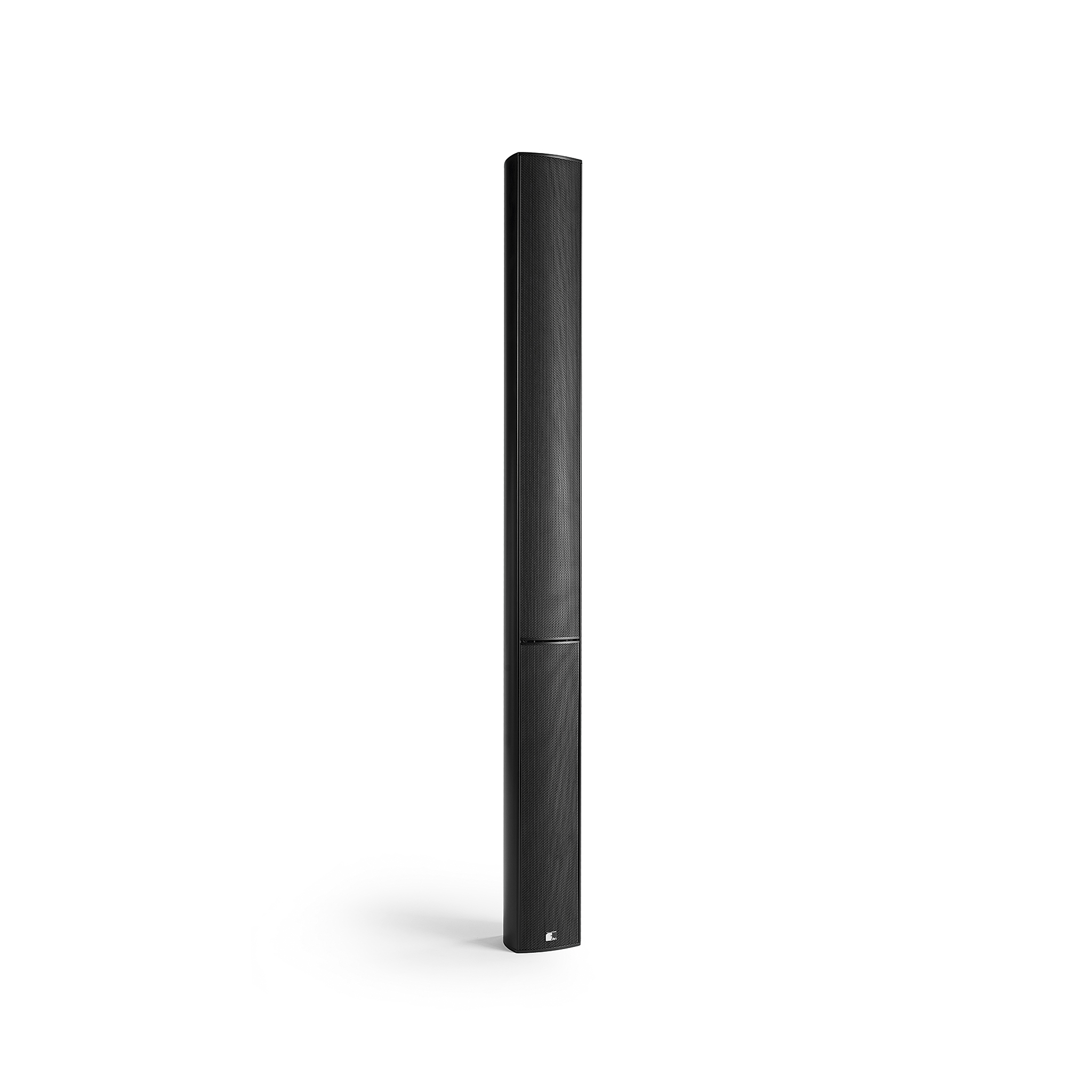

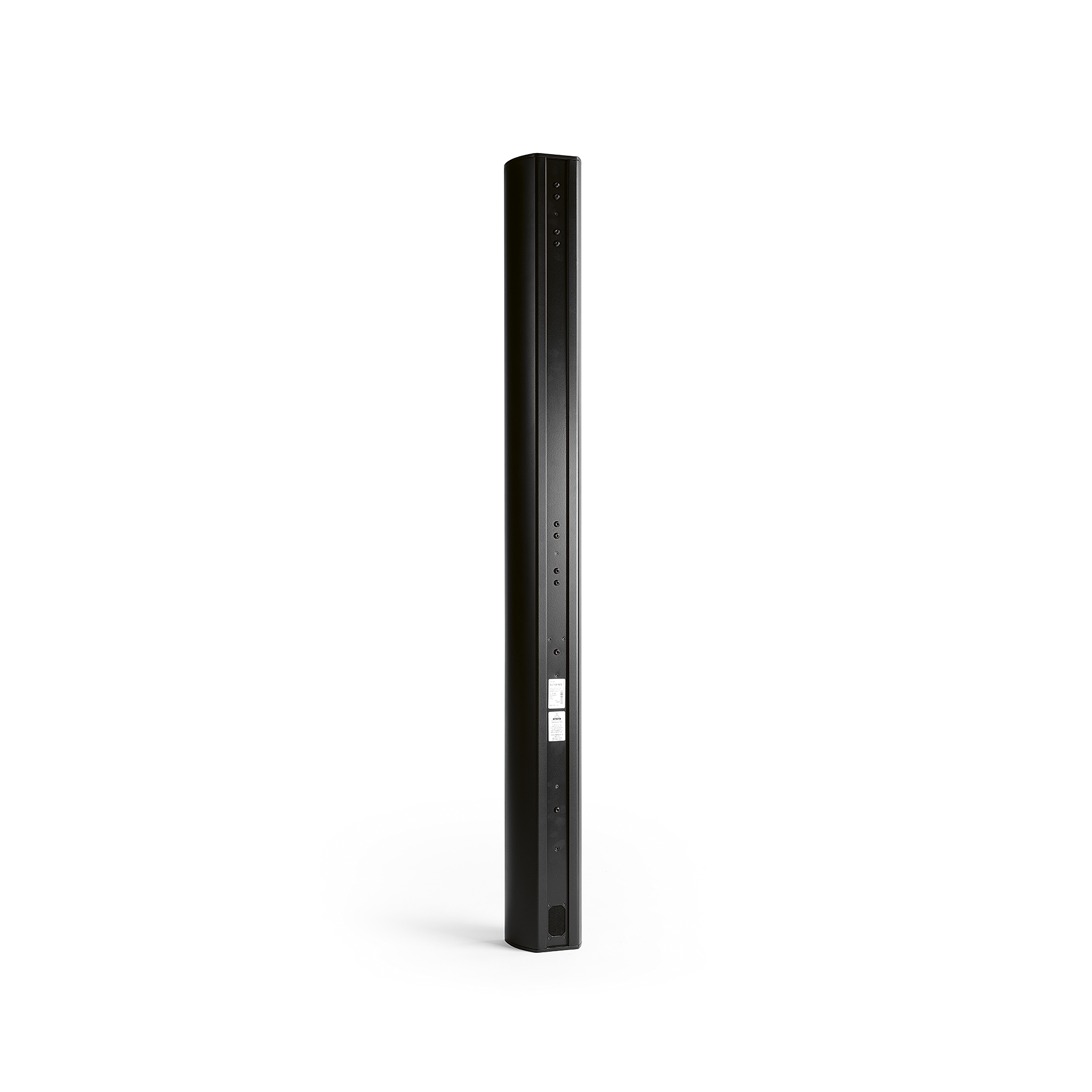

DLI-130

DLI-130은 Focus 시리즈의 콤팩트하고 전자 제어가 가능한 라인 소스 스피커입니다. 고성능 스피커는 speech와 music 애플리케이션에 최적화되어 있고,  물리적인 각도를 조절할 필요 없이 간단히 최적화된 라인 소스 분산각을 Beam Steering을 통해 이루어냅니다.



Electroacoustic features

• acoustic design : electronically steerable line source speaker

• components : 8 × 4" impregnated (fully neodymium)

• maximum SPL (1 m) : 124 dB

• operational mode : active, 8 × DSP amplifiers, Class-D

• frequency range : 60 Hz – 17 kHz

• nominal dispersion, horizontal : 110°

• vertical beam width, digitally controlled : 0° to +90° in 0.1° increments

• vertical inclination angle, digitally controlled : -40° to +40° in 0.1°increments

• acoustic centre : both beams moveable between 0 – 100 % (from speaker bottom to top)

Datasheet_DLI-130_fixed_installation.pdf

0.51MB
