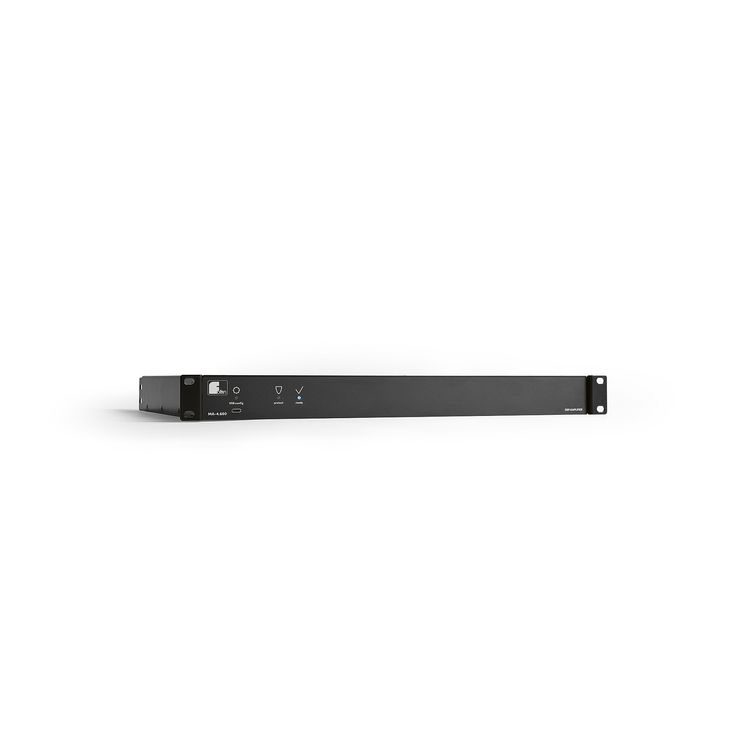

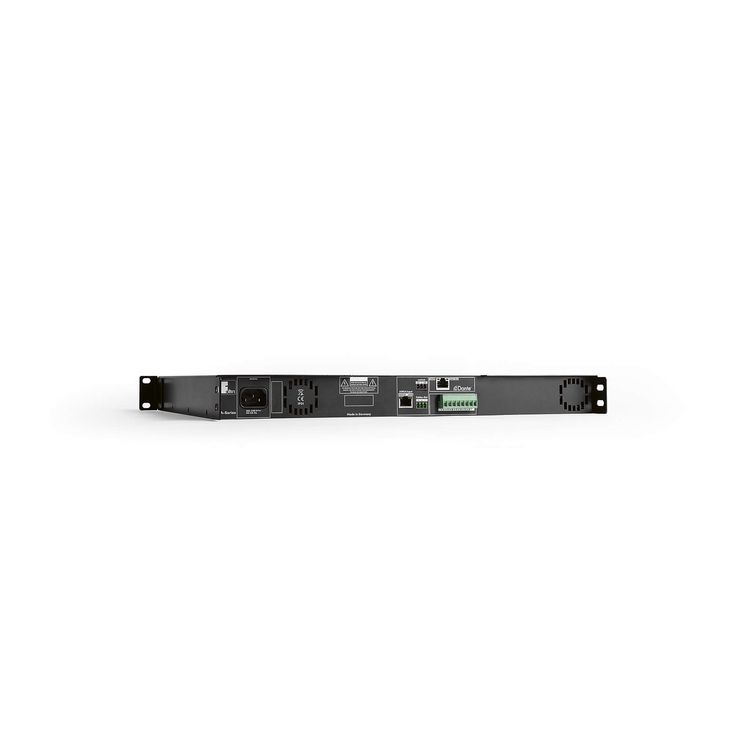

MA-4.600

Fohhn 2020. 11. 26. 18:01

MA-4.600은 4 x 4 라우팅 매트릭스를 가진 콤팩트 한 4 채널 디지털 앰프입니다. 중소규모 프로젝트에 이상적이며 용도가 다양하며 가격 대비 효율이 뛰어납니다. 미디어 컨트롤을 쉽게 운용할 수 있으며 USB-C소켓을 통해 Fohhn Audio Soft로 쉽게 구성할 수 있습니다.



Electronic features

  • amplifier technology : Class D

  • amplifier outputs : 4

  • DSP routing (matrix) : 4 × 4

  • frequency response : 20 Hz – 20 kHz

  • signal/noise ratio : > 103 dB/A

  • THD+N : 0,15% (1 kHz, 8 ohms, 3 dB below clipping)

  • dynamic range : > 120 dB

  • password protection : yes

  • auto power save : adjustable from 1 s to 12 h, or never active

  • protective circuit : over voltage protection, over current protection, over temperature protection, short-circuit protection, DC protection, power on delay, soft start and inrush current limit

  • power supply : 100 – 240 V AC 50/60 Hz, universal power supply with Power Factor Correction (PFC)

  • power consumption : maximum 700 W, idle state 35 W, Auto Power Save 2 W, standby 2 W

  • heat dissipation : max. 120 W, 410 BTU/h, 104 kcal/h

  • temperature range : 0 – 40°C

  • cooling : temperature-controlled fan

  • output power : 4 × 600 W / 4 ohms / 100 V / 70 V, 4 × 300 W / 8 ohms (1 kHz, THD+N <1 %)

  • minimum impedance : 4 ohms

  • input channels : 4

Datasheet_MA-4.600.pdf
0.31MB
