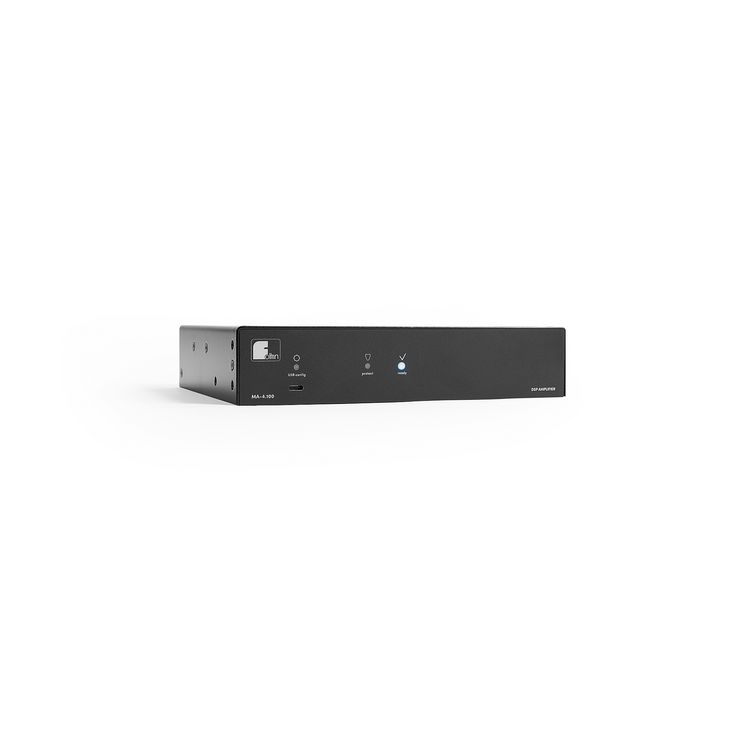

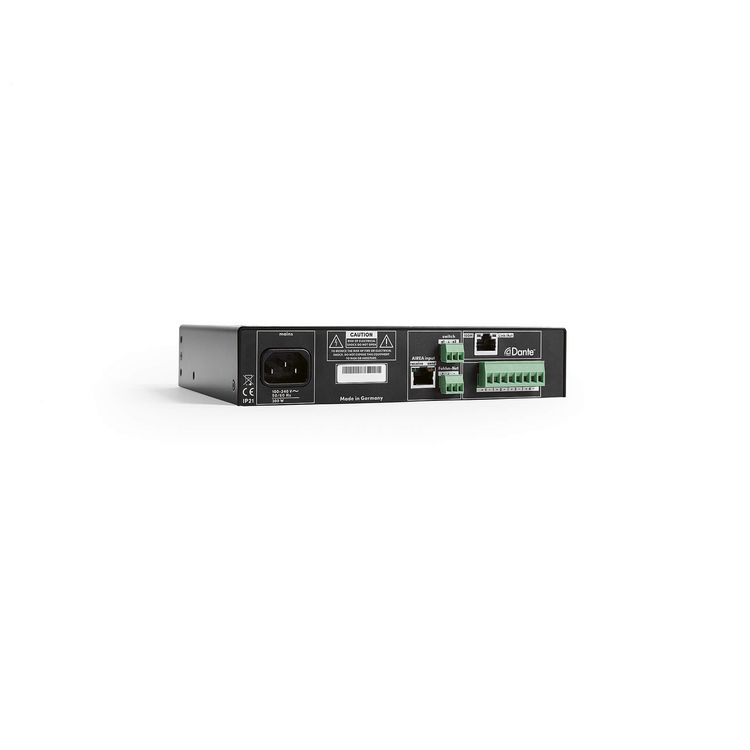

MA-4.100

Fohhn 2020. 11. 26. 17:46

MA-4.100은 미디어 애플리케이션 및 소형 시스템을 위한 4 채널 디지털 파워 앰프입니다. 4 x 4 매트릭스를 갖춘 DSP앰프는 회의실 및 세미나실 등 미디어 시스템에 설치하기에 알맞습니다. RJ-485를 통해 미디어 컨트롤을 쉽게 할 수 있으며 USB-C 소켓을 통해 Fohhn Audio Soft로 쉽게 구성할 수 있습니다.



Electronic features

  • amplifier technology : Class D

  • amplifier outputs : 4

  • DSP routing (matrix) : 4 × 4

  • frequency response : 20 Hz – 20 kHz

  • signal/noise ratio : > 103 dB/A

  • THD+N : 0,08% (1 kHz, 8 ohms, 3 dB below clipping)

  • dynamic range : > 120 dB

  • password protection : yes

  • auto power save : adjustable from 1 s to 12 h, or never active

  • protective circuit : over voltage protection, over current protection, over temperature protection, short-circuit protection, DC protection, power on delay, soft start and inrush current limit

  • power supply : 100 – 240 V AC 50/60 Hz, universal power supply with Power Factor Correction (PFC)

  • power consumption : maximum 300 W, idle state 7 W, Auto Power Save 2 W, standby 2 W

  • heat dissipation : max. 15 W, 51 BTU/h, 13 kcal/h

  • temperature range : 0 – 40 °C

  • cooling : temperature-controlled fan

  • output power : 4 × 65 W / 4 ohms, 4 × 35 W / 8 ohms (1 kHz, THD+N < 1 %)

  • minimum impedance : 4 ohms

  • input channels : 4

Datasheet_MA-4.100.pdf
0.35MB
