Fohhn/System Amplifiers

DI-4.2000

Fohhn 2020. 11. 26. 17:39

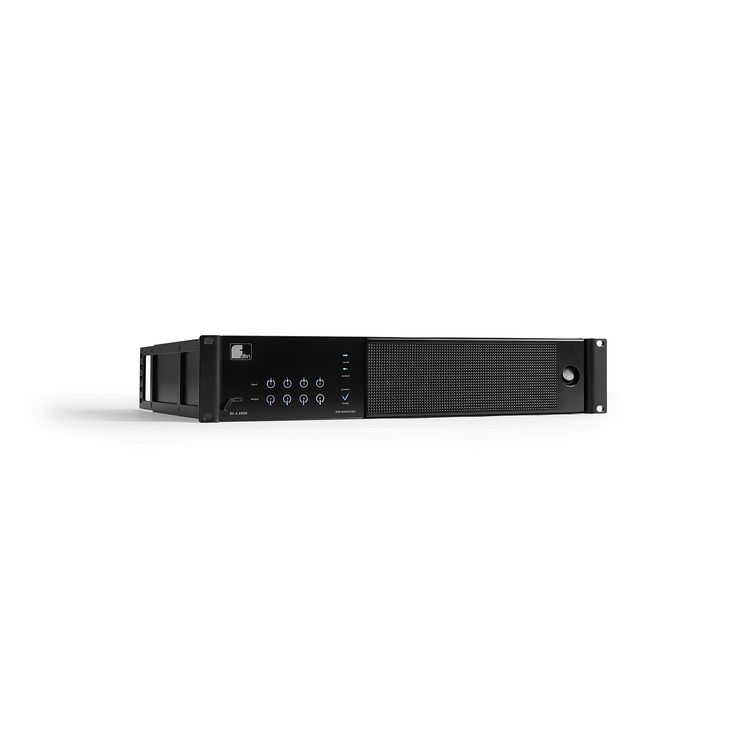

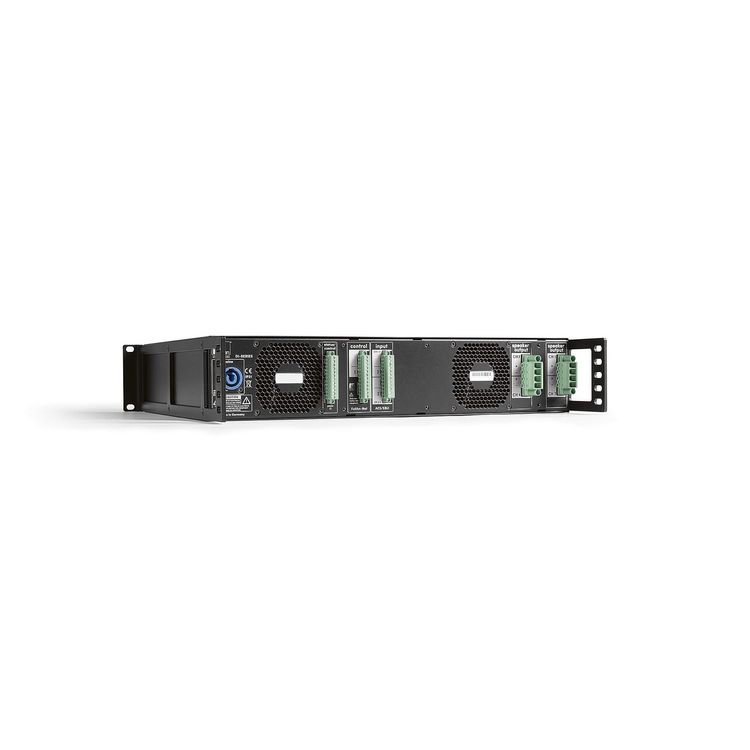

DI-4.2000은 독일에서 제조된 디지털 4 채널 앰프입니다. Fohhn이 개발하고 제조한 DSP앰프는 높은 앰프 출력과 우수한 사운드를 제공합니다. 앰프는 모바일 사운드 시스템 및 고정 설치용으로 설계되었습니다. 오디오 입력은 모든 필수 기능뿐 아니라 AES/EBU, Dante 또는 Analog를 지원하는 연결 모듈을 제공하여 최대의 효율성을 제공합니다. 모든 fohhn스피커 프리셋을 지원하여 최적의 성능과 신뢰성을 보장합니다.



Electronic features

  • amplifier technology : Class D

  • amplifier outputs : 4

  • DSP routing (matrix) : 4 × 4

  • frequency response : 20 Hz – 20 kHz

  • signal/noise ratio : >100 dB/A

  • THD+N : 0.15 % (1 kHz, 8 ohms, 3 dB below clipping)

  • dynamic range : >120 dB

  • password protection : yes

  • auto power save : adjustable from 1 s to 12 h, or never active

  • protective circuit : over voltage protection, over current protection, over temperature protection, short-circuit protection, DC protection, power on delay, soft start and inrush current limit

  • power supply : 100 – 240 V AC 50/60 Hz, universal power supply with Power Factor Correction (PFC)

  • power consumption : Maximum (RMS) 1800 W, idle state 90 W, auto power save 10 W, standby 5 W, power on/off switch / remote power off 2 W

  • heat dissipation : Maximal 300 W, 1020 BTU/h, 258 kcal/h

  • temperature range : 0 – 40 °C

  • cooling : temperature-controlled fan

  • output power : 4 × 2000 W / 4 ohms / 100 V / 70 V, 4 × 1000 W / 8 ohms (1 kHz, THD+N <1 %)

  • minimum impedance : 4 ohms

  • input channels : 4

Datasheet_DI-4.2000.pdf
0.40MB
